Xcalliber Allison Transmission Valvebody Assembly, 2001-2003 LB7

Fits: 2001 thru 2003 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7 Duramax Diesel with Allison 1000 Transmission

*Please contact us for current lead times*

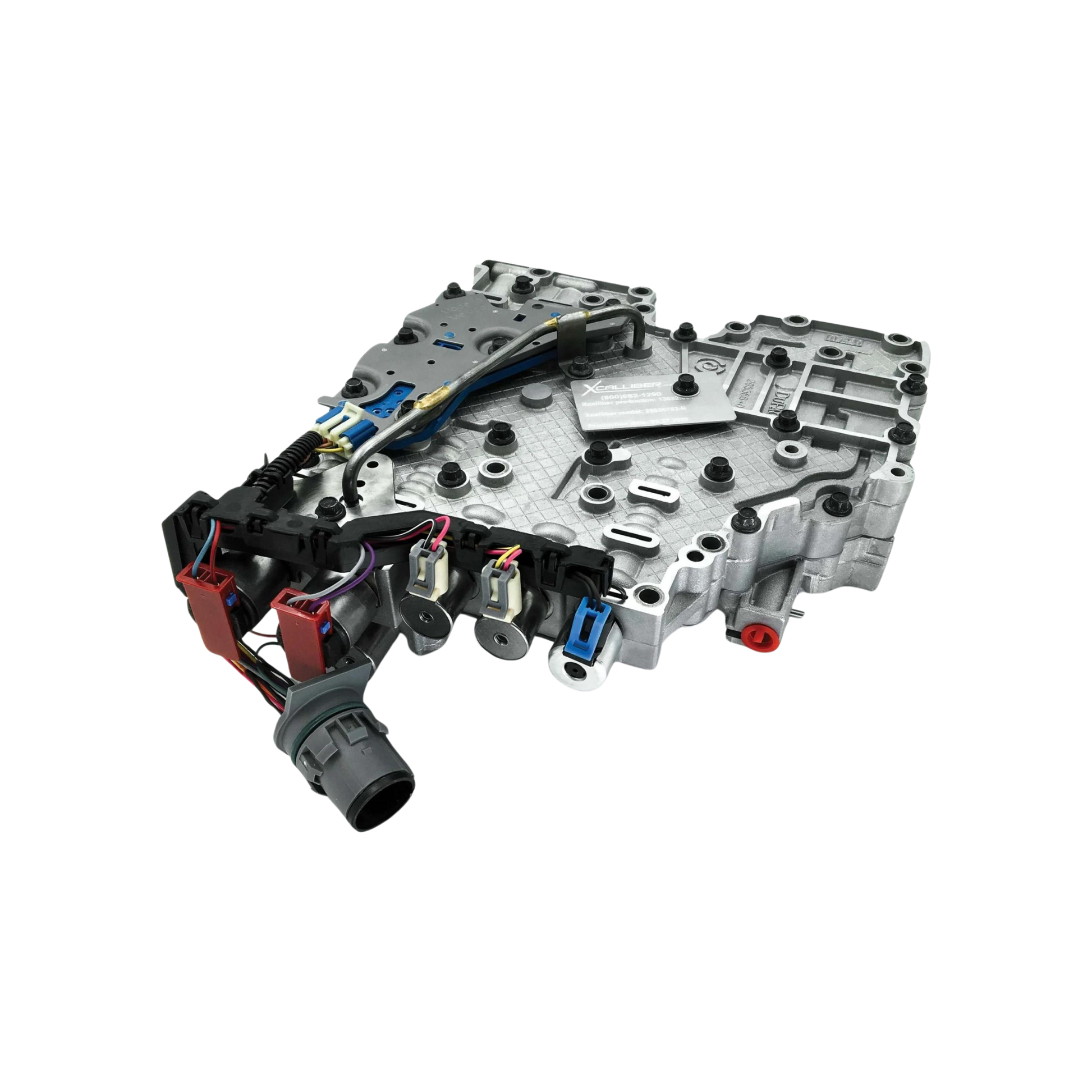

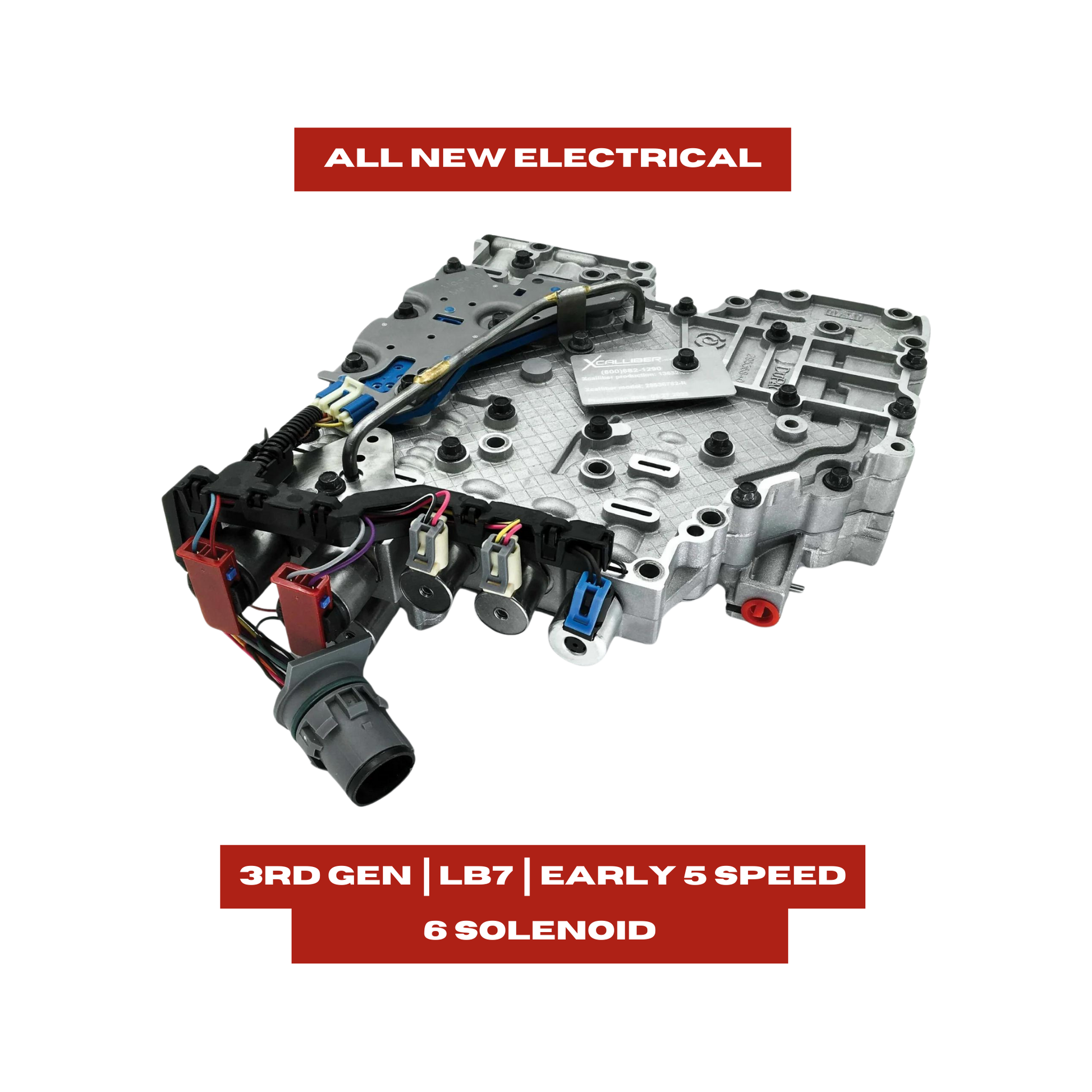

Remanufactured OE replacement Xcalliber valvebody assembly for 2001-2003 Duramax trucks equipped with an Allison 1000 5-speed transmission. If you're rebuilding the transmission, it is highly recommended to replace the valvebody assembly. Old valvebody assemblies could be contaminated and ruin your new transmission.

Features:

• Refurbished with new components
• Brand new solenoids
• Brand new pressure switch
• Brand new internal wiring harness
• Units fully function tested
• Built in USA to Allison specifications

Includes:

• 1x Valvebody assembly

Notes:

• 2001-2003 5 speed valvebody, should have six solenoids and one tube on the bottom
• If your valvebody has 7 solenoids, see part #29541572-R
• All Core Return Costs are responsible to the customer. Please contact our customer support team with any core return questions you may have. Core returns must be processed online via the Return Request Form


Replaces Part #:

• Upper Casting # 29536838 (smaller section)
• Lower Casting # 29536840 (larger section)
