DmaxStore Stage 2 Leveling Kit, 2020-2025 LM2/LZ0

Fits: 2020 thru 2025 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Diesel

Not compatible with Chevy Trail Boss/ZR2 and GMC AT4/AT4X suspension

Installing a 1.5-inch leveling kit paired with Kryptonite upper control arms on your GM 1500 is a popular upgrade for truck owners looking to level out the factory rake, improve overall stance, and run slightly larger tires. This setup not only enhances the truck's appearance but also maintains ride quality and ensures proper suspension geometry. The addition of Kryptonite control arms helps correct ball joint angles after lifting the front end, offering improved durability and suspension travel compared to stock components. It's a reliable and performance-oriented solution that doesn’t compromise factory handling or stress key components.

Features:

• Leveling solution with new upper strut spacers
• Reduce contact with CV boots
• 1.5" leveling solution
• Made from aircraft-grade aluminum

• Control arms with corrected ball joint angle
• Lifetime warranty

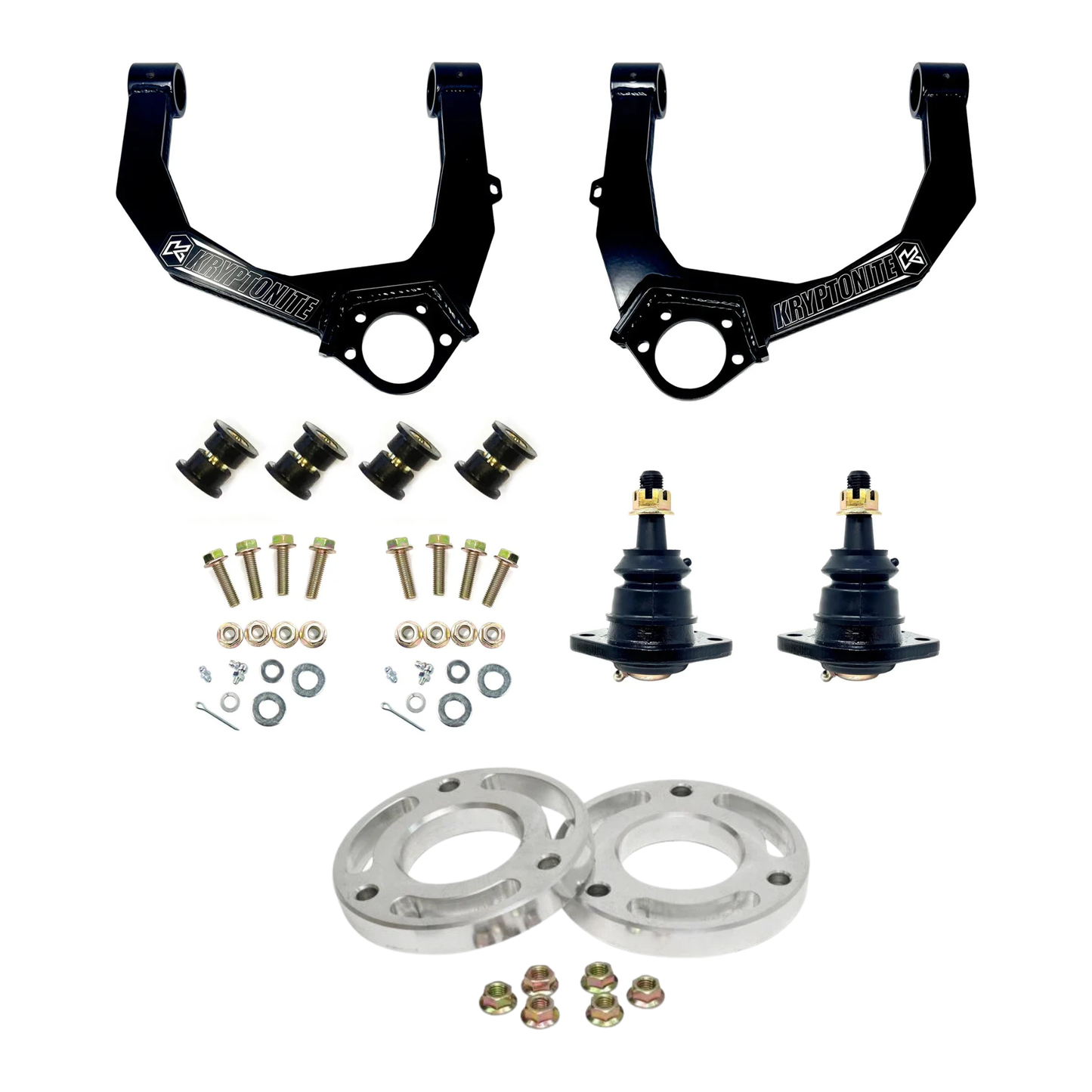

Includes:

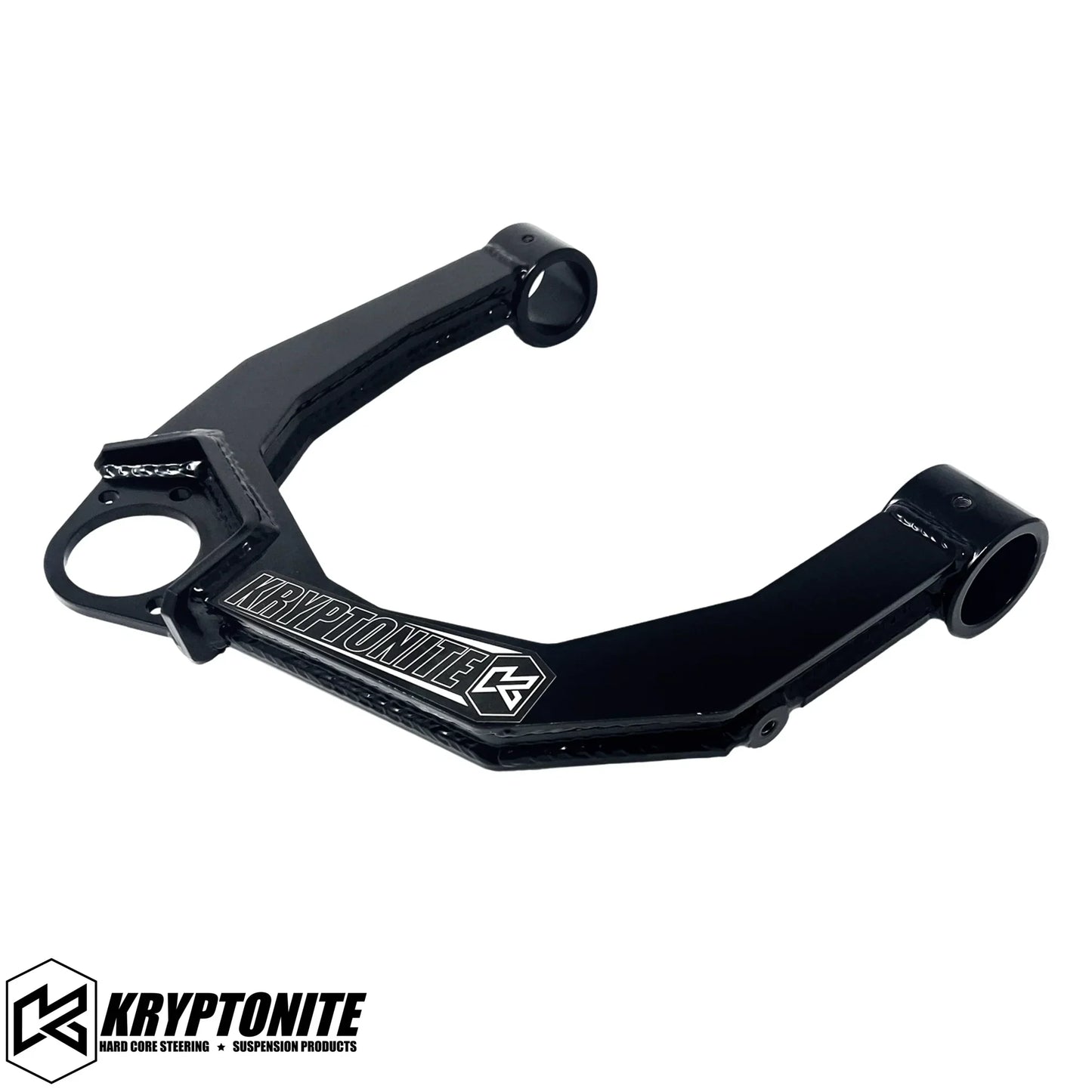

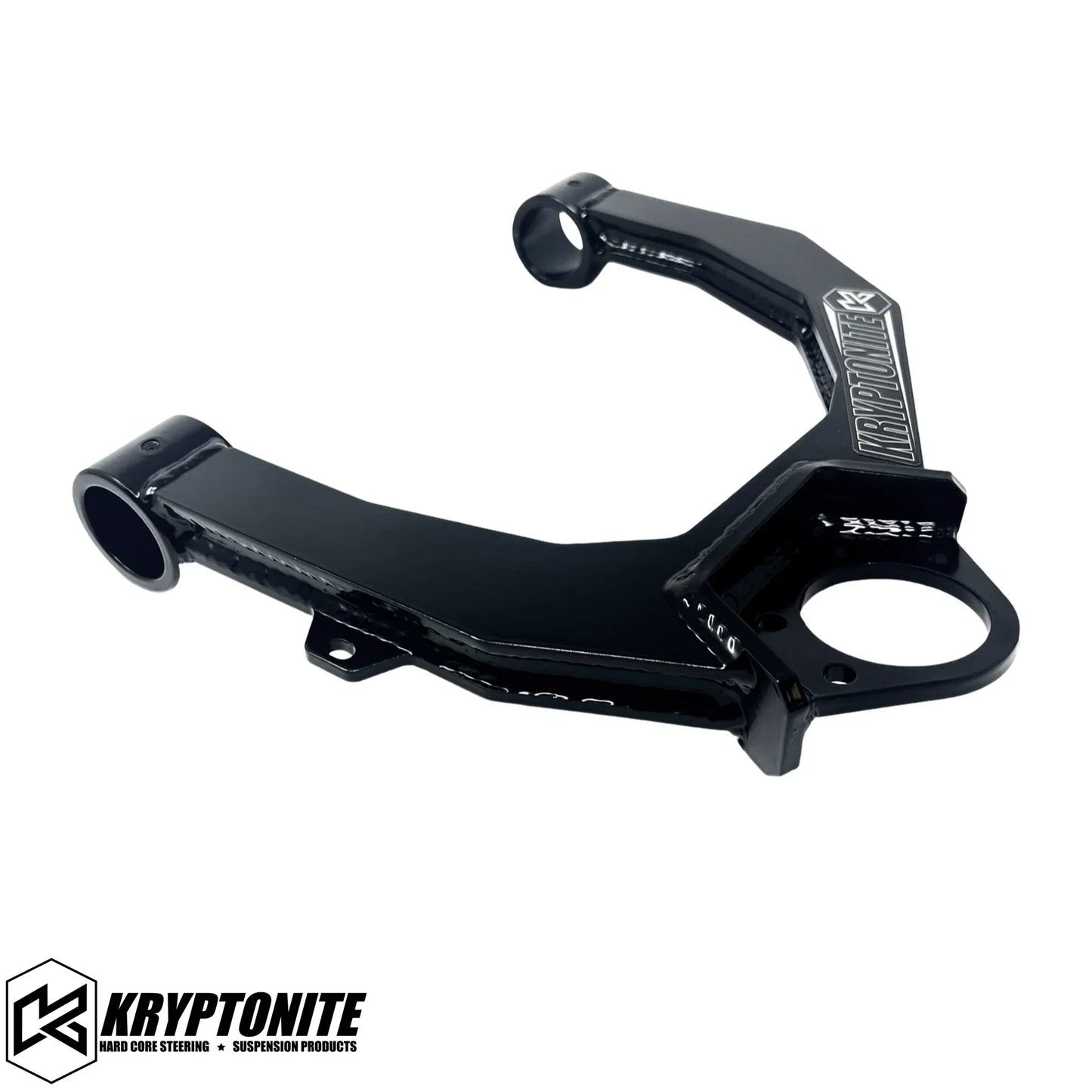

• 1 x Kryptonite Upper Control Arm Pair
• 4 x Control Arm Sleeves
• 8 x Control Arm Bushings
• 2 x Kryptonite Bolt on Upper Ball Joints
• 1 x Hardware Package

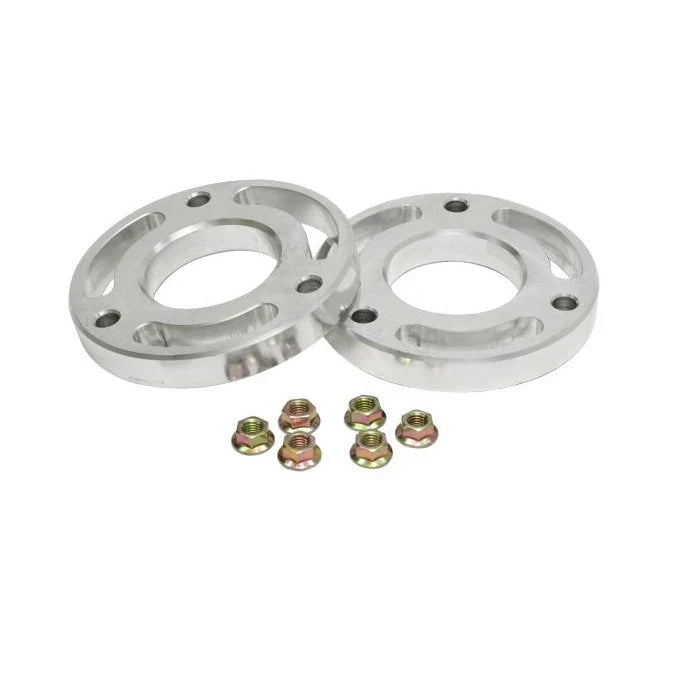

• 2 x CNC machined 6061-T6 billet aluminum upper strut extensions
• 4 x installation nuts

Notes:

• Some wheels may require 6mm or greater wheel spacer to clear the brake caliper
• MAX 33x11.50-20 on 20x9 0 offset
• Minor trimming to felt liner may be required on some applications
• Every tire and wheel combination should be test fit before installation
• Some wheels may require front wheel spacers to clear the caliper
• Not compatible with Super Cruise
