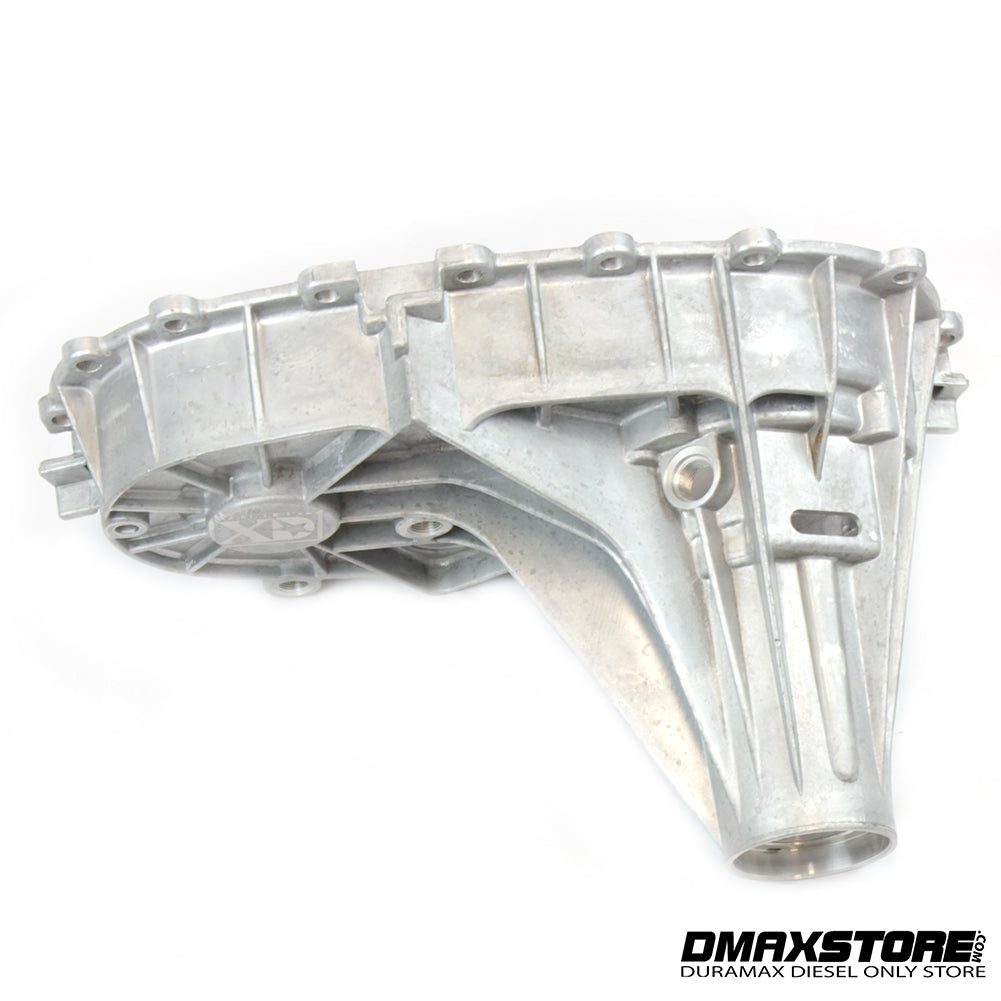

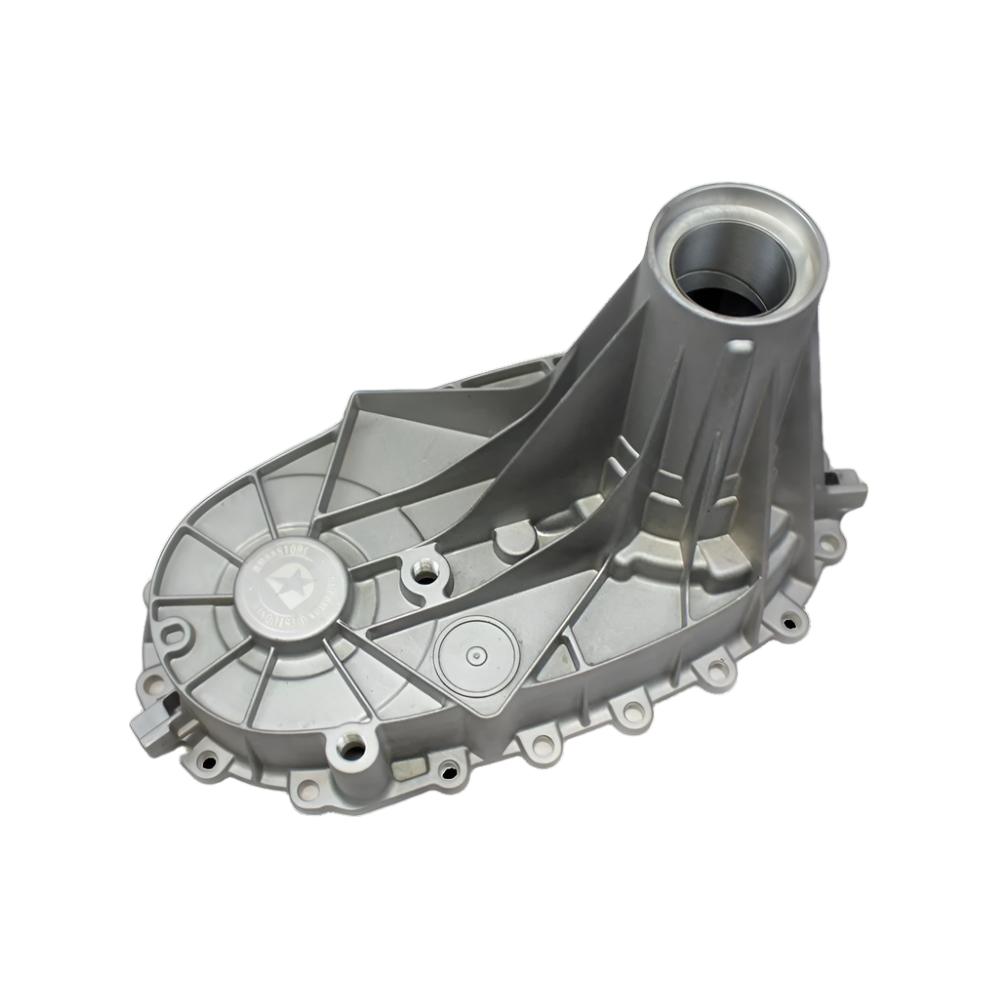

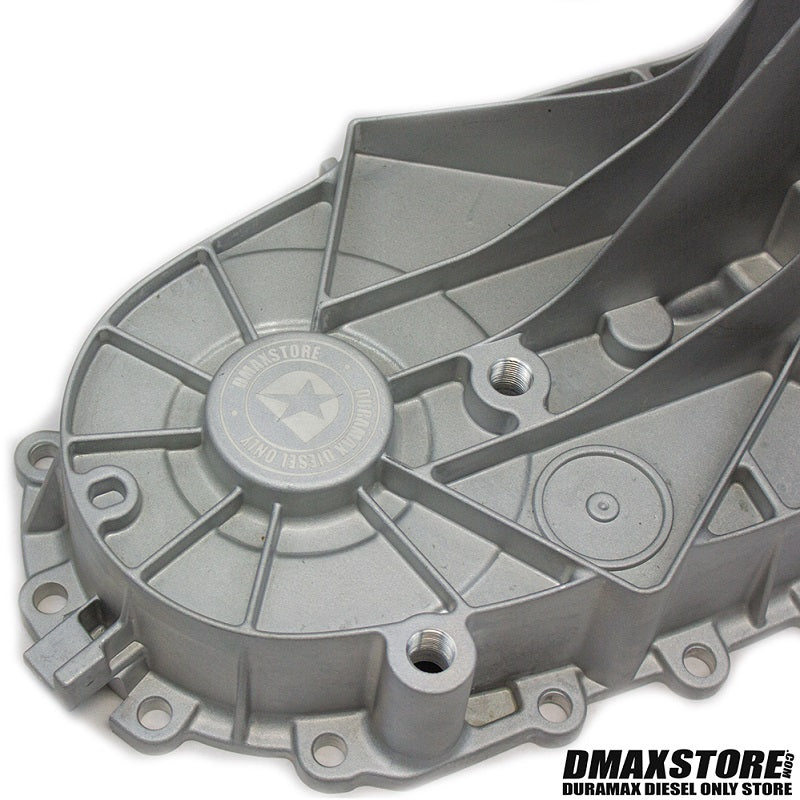

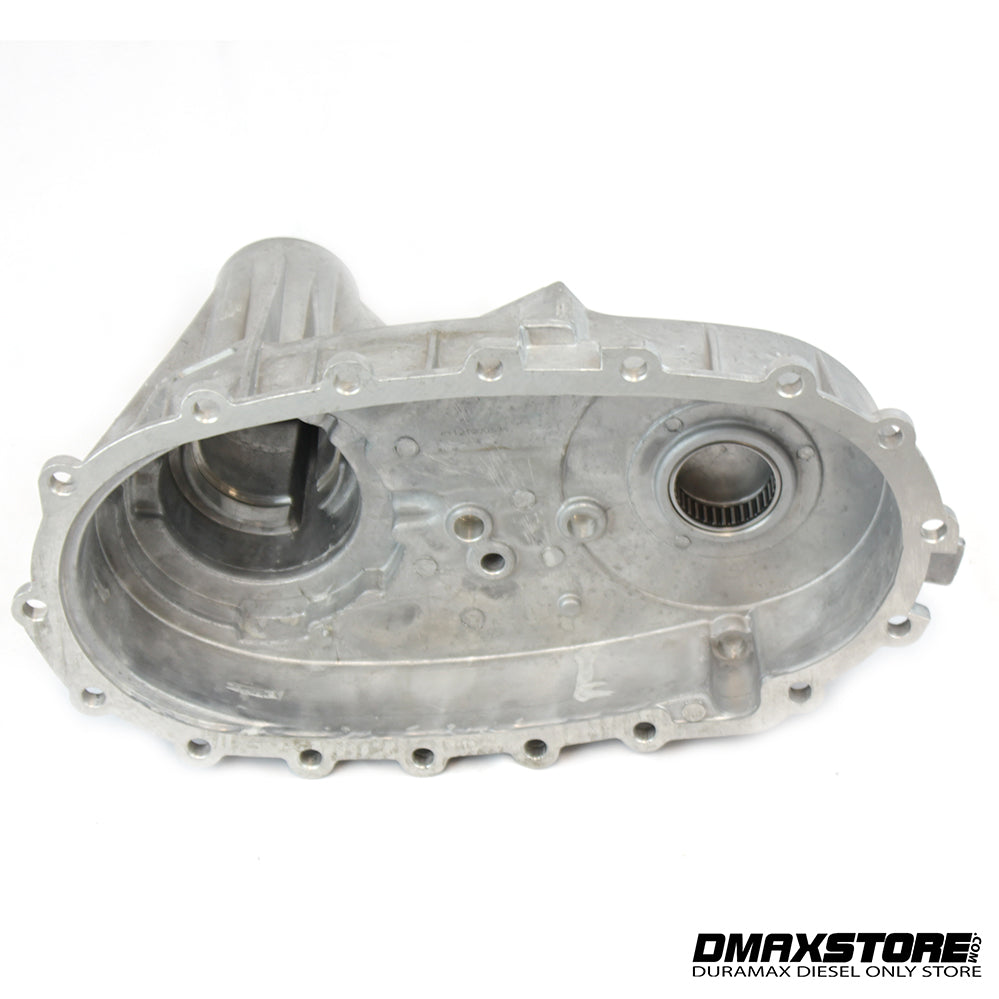

DMAX XD Rear Transfer Case Housing, 2001-2007 LB7/LLY/LBZ

DMAX XD Rear Transfer Case Housing, 2001-2007 LB7/LLY/LBZ

$237.49 USD
$237.49 USD
Sale Sold out
Title

Fits: 2001 thru 2007 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ Duramax Diesel

Made from aluminum not magnesium, the Dmax XD rear housing is much more rigid and stronger than the OEM unit. There is no need for a pump rub kit with this improved housing.

Features:
  • Brand new improved aluminum housing
  • Eliminate known pump rub through issue

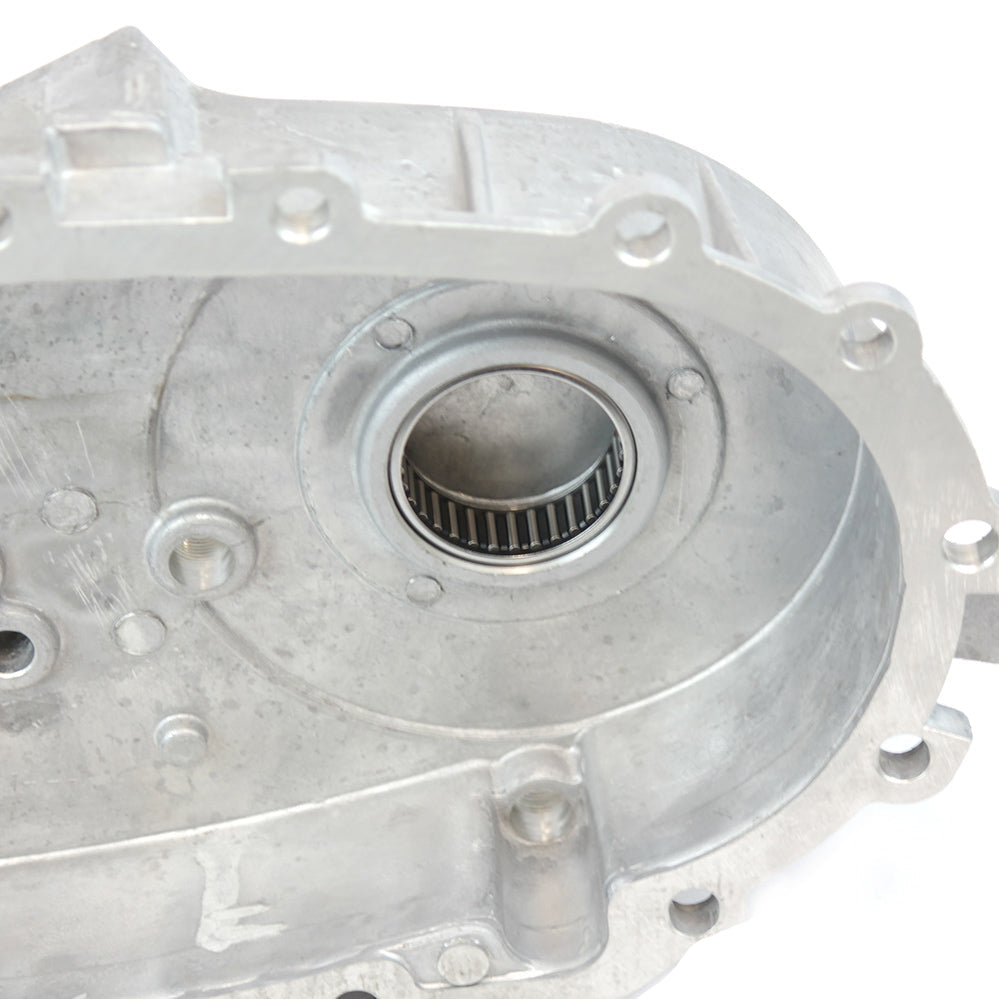

  • Driven sprocket support bearing & slip yoke bushing pre-installed

Includes:

  • Rear Transfer Case housing
  • Drive sprocket support bearing & slip yoke bushing
Warranty:
  • Lifetime warranty against pump rub, 12 month warranty against anything else

Notes:

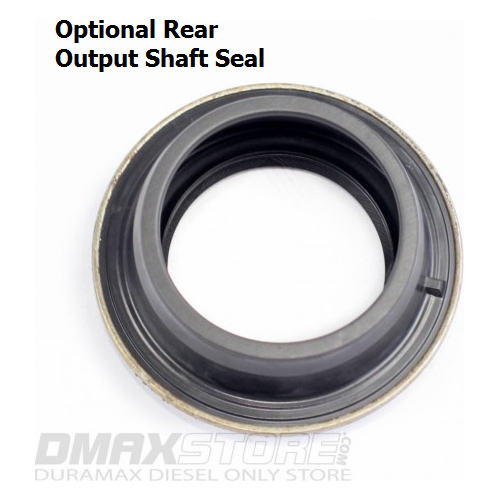

  • Does not include drain/fill plugs or rear output seal
  • You must swap over snap ring for rear bearing and drain/fill plugs
  • Transfer case rear output shaft bearing will have a very tight fitment to keep from vibrating, we recommend lightly tapping the end of the new housing to get the bearing seated while attached to the shaft
  • Specialty lock ring pliers required to disassemble rear transfer case housing
